T5 Transporter inc. 4Motion (2003-2015)

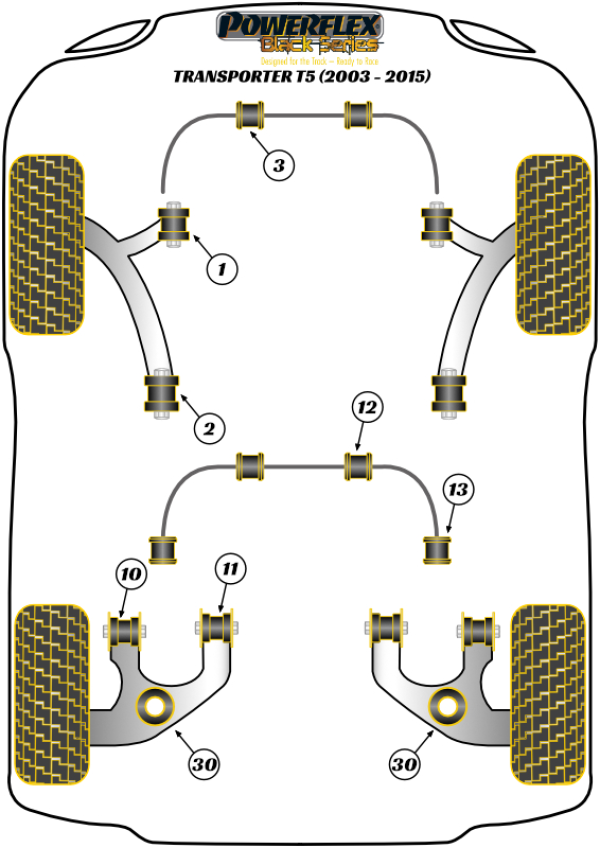

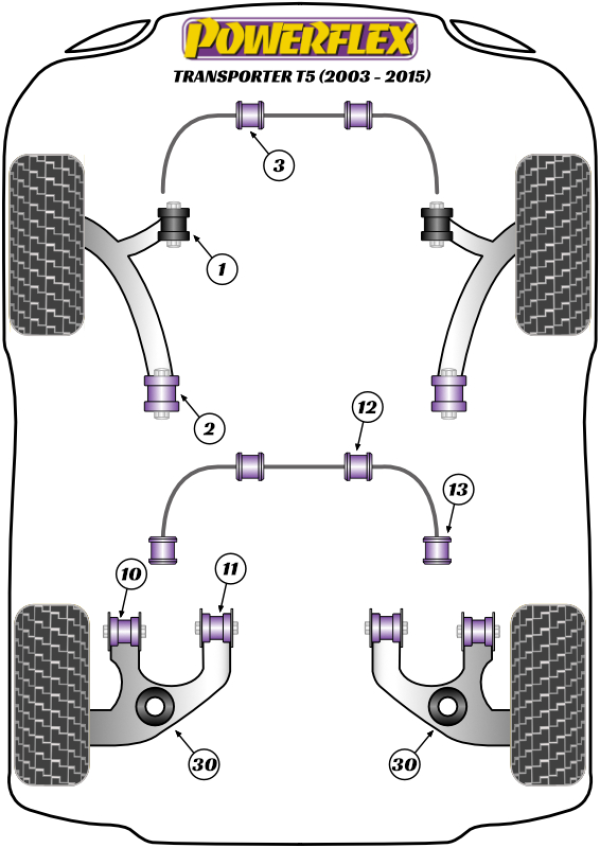

Part availability by series
| Part Ref. | Road Series | Heritage Collection | Black Series |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 3 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 30 |
- PFF85-1301G allows on-car Camber adjustment of +/- 0.75 deg. Use PFF85-1301 if no adjustment is required
- PFF85-1302G allows on-car Caster adjustment of +/- 0.6 deg. Use PFF85-1302 if no adjustment is required
- PFR85-1310G and PFR85-1311G allow on-car adjustment of +/- 1.0 deg. camber and toe. Use PFF85-1310 and PFR85-1311 if no adjustment is required
- PFA100-14 are camber bolts for additional adjustment, they do not fit vehicles where the front shock absorber slides into the hub it has to have a bracket at the bottom of the shock with 2 bolt fixing to work.
- PFF85-1301G allows on-car Camber adjustment of +/- 0.75 deg. Use PFF85-1301 if no adjustment is required
- PFF85-1302G allows on-car Caster adjustment of +/- 0.6 deg. Use PFF85-1302 if no adjustment is required
- PFR85-1310G and PFR85-1311G allow on-car adjustment of +/- 1.0 deg. camber and toe. Use PFF85-1310 and PFR85-1311 if no adjustment is required
- PFA100-14 are camber bolts for additional adjustment, they do not fit vehicles where the front shock absorber slides into the hub it has to have a bracket at the bottom of the shock with 2 bolt fixing to work.
- PFF85-1301G allows on-car Camber adjustment of +/- 0.75 deg. Use PFF85-1301 if no adjustment is required
- PFF85-1302G allows on-car Caster adjustment of +/- 0.6 deg. Use PFF85-1302 if no adjustment is required
- PFR85-1310G and PFR85-1311G allow on-car adjustment of +/- 1.0 deg. camber and toe. Use PFF85-1310 and PFR85-1311 if no adjustment is required
- PFA100-14 are camber bolts for additional adjustment, they do not fit vehicles where the front shock absorber slides into the hub it has to have a bracket at the bottom of the shock with 2 bolt fixing to work.
PowerAlign Wheel Mounting Guide Pin
PF99-514-15
Per Bush
£ 30.42
Per Car Set
£ 30.42
Per Bush
£ 25.35
Per Car Set
£ 25.35
PowerAlign Camber Bolt Kit (14mm)
PFA100-14
Per Bush
£ 28.44
Per Car Set
£ 28.44
Per Bush
£ 23.70
Per Car Set
£ 23.70
PowerAlign Camber Bolt Kit (14mm)
PFA100-14
Per Bush
£ 28.44
Per Car Set
£ 28.44
Per Bush
£ 23.70
Per Car Set
£ 23.70
Front Arm Front Bush
PFF85-1301
Per Bush
£ 38.82
Per Car Set
£ 77.64
Per Bush
£ 32.35
Per Car Set
£ 64.70
Front Arm Front Bush
PFF85-1301BLK
Per Bush
£ 38.82
Per Car Set
£ 77.64
Per Bush
£ 32.35
Per Car Set
£ 64.70
Front Arm Front Bush, Camber Adjustable
PFF85-1301G
Per Bush
£ 60.84
Per Car Set
£ 121.68
Per Bush
£ 50.70
Per Car Set
£ 101.40
Front Arm Front Bush, Camber Adjustable
PFF85-1301GBLK
Per Bush
£ 60.84
Per Car Set
£ 121.68
Per Bush
£ 50.70
Per Car Set
£ 101.40
Front Arm Rear Bush
PFF85-1302
Per Bush
£ 45.30
Per Car Set
£ 90.60
Per Bush
£ 37.75
Per Car Set
£ 75.50
Front Arm Rear Bush
PFF85-1302BLK
Per Bush
£ 49.86
Per Car Set
£ 99.72
Per Bush
£ 41.55
Per Car Set
£ 83.10
Front Arm Rear Bush, Caster Adjustable
PFF85-1302G
Per Bush
£ 66.66
Per Car Set
£ 133.32
Per Bush
£ 55.55
Per Car Set
£ 111.10
Front Arm Rear Bush, Caster Adjustable
PFF85-1302GBLK
Per Bush
£ 73.38
Per Car Set
£ 146.76
Per Bush
£ 61.15
Per Car Set
£ 122.30
Front Anti Roll Bar Bush 22mm
PFF85-1303-22
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Front Anti Roll Bar Bush 22mm
PFF85-1303-22BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Front Anti Roll Bar Bush 23mm
PFF85-1303-23
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Front Anti Roll Bar Bush 23mm
PFF85-1303-23BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Front Anti Roll Bar Bush 25mm
PFF85-1303-25
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Front Anti Roll Bar Bush 25mm
PFF85-1303-25BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Arm Outer Bush
PFR85-1310
Per Bush
£ 48.54
Per Car Set
£ 97.08
Per Bush
£ 40.45
Per Car Set
£ 80.90
Rear Arm Outer Bush
PFR85-1310BLK
Per Bush
£ 53.40
Per Car Set
£ 106.80
Per Bush
£ 44.50
Per Car Set
£ 89.00
Rear Arm Outer Bush, Adjustable
PFR85-1310G
Per Bush
£ 73.14
Per Car Set
£ 146.28
Per Bush
£ 60.95
Per Car Set
£ 121.90
Rear Arm Outer Bush, Adjustable
PFR85-1310GBLK
Per Bush
£ 80.46
Per Car Set
£ 160.92
Per Bush
£ 67.05
Per Car Set
£ 134.10
Rear Arm Inner Bush
PFR85-1311
Per Bush
£ 55.02
Per Car Set
£ 110.04
Per Bush
£ 45.85
Per Car Set
£ 91.70
Rear Arm Inner Bush
PFR85-1311BLK
Per Bush
£ 60.54
Per Car Set
£ 121.08
Per Bush
£ 50.45
Per Car Set
£ 100.90
Rear Arm Inner Bush, Adjustable
PFR85-1311G
Per Bush
£ 77.70
Per Car Set
£ 155.40
Per Bush
£ 64.75
Per Car Set
£ 129.50
Rear Arm Inner Bush, Adjustable
PFR85-1311GBLK
Per Bush
£ 85.50
Per Car Set
£ 171.00
Per Bush
£ 71.25
Per Car Set
£ 142.50
Rear Anti Roll Bar Bush to Chassis 22mm
PFR85-1312-22
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Chassis 22mm
PFR85-1312-22BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Anti Roll Bar Bush to Chassis 24mm
PFR85-1312-24
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Chassis 24mm
PFR85-1312-24BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Anti Roll Bar Bush to Chassis 28mm
PFR85-1312-28
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Chassis 28mm
PFR85-1312-28BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Anti Roll Bar Bush to Arm 22mm
PFR85-1313-22
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Arm 22mm
PFR85-1313-22BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Anti Roll Bar Bush to Arm 24mm
PFR85-1313-24
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Arm 24mm
PFR85-1313-24BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Anti Roll Bar Bush to Arm 28mm
PFR85-1313-28
Per Bush
£ 25.32
Per Car Set
£ 50.64
Per Bush
£ 21.10
Per Car Set
£ 42.20
Rear Anti Roll Bar Bush to Arm 28mm
PFR85-1313-28BLK
Per Bush
£ 28.44
Per Car Set
£ 56.88
Per Bush
£ 23.70
Per Car Set
£ 47.40
Rear Lower Spring Isolator Pad
PFR85-1330
Per Bush
£ 24.54
Per Car Set
£ 49.08
Per Bush
£ 20.45
Per Car Set
£ 40.90
